Bently Nevada

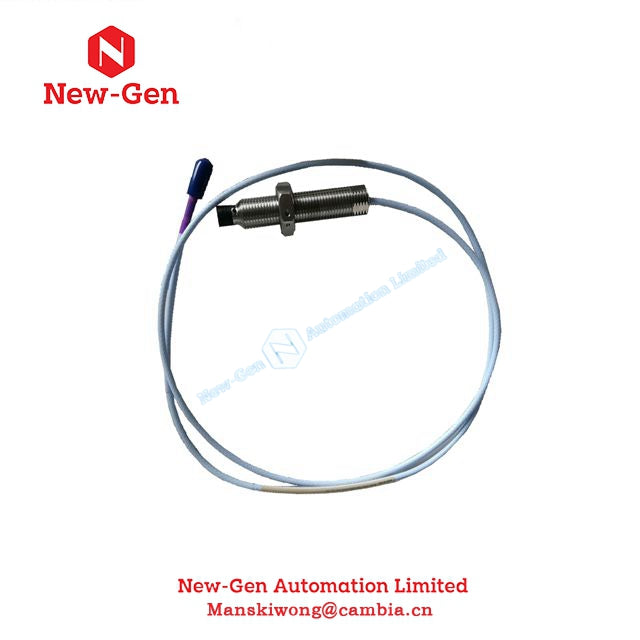

Bently Nevada 330104-04-14-50-12-00 3300 XL 8 mm Proximity Transducer System In Stock

Bently Nevada 330104-04-14-50-12-00 3300 XL 8 mm Proximity Transducer System In Stock


  • Manufacturer: Bently Nevada

  • Part Number: 330104-04-14-50-12-00

  • Condition:New with Original Package

  • Product Type: 3300 XL 8 mm Proximity Transducer System

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months


Product Description

The Bently Nevada 330104-04-14-50-12-00 is part of the 3300 XL 8mm Proximity Transducer System. Designed to provide precise and reliable non-contact vibration and displacement measurements, this system is ideal for use with critical machinery in a wide range of industries. Its high performance and durability make it a standard solution for monitoring rotating machinery in the oil and gas, power generation, and manufacturing sectors. The system meets the requirements of the API 670 standard, ensuring reliable operation in harsh industrial environments.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API)
670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components

Technical Specifications

  • Model: 330104-04-14-50-12-00
  • Probe Tip Diameter: 8mm
  • Probe Length: 14 feet (4.3 meters)
  • System Cable Length: 50 feet (15.24 meters)
  • Mounting Thread: 3/8-24 UNF
  • Sensitivity: 7.87 V/mm (200 mV/mil)
  • Measurement Range: 2 mm (80 mils)
  • Frequency Response: 0 to 10 kHz
  • Operating Temperature:
    • Probe: -35°C to +177°C (-31°F to +350°F)
    • Extension Cable: -51°C to +177°C (-60°F to +350°F)
    • Proximitor Sensor: -35°C to +100°C (-31°F to +212°F)
  • Storage Temperature: -51°C to +177°C (-60°F to +350°F)
  • Output Signal: 4-20 mA
  • Power Supply Voltage: -24V DC to -30V DC
  • Maximum Cable Length: 100 feet (30.48 meters)
  • Connector Type: Miniature coaxial connector
  • Linear Range: 80 mils (2.0 mm)
  • Recommended Gap: 50 mils (1.27 mm)



    Other Attributes

    • Series: 3300 System
    • Country of Origin: USA
    • Lead Time: In Stock, 2 Working Days
