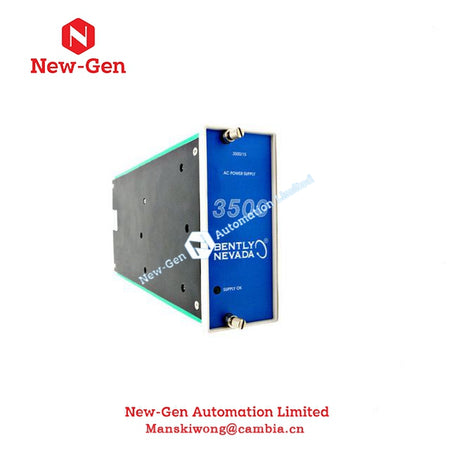

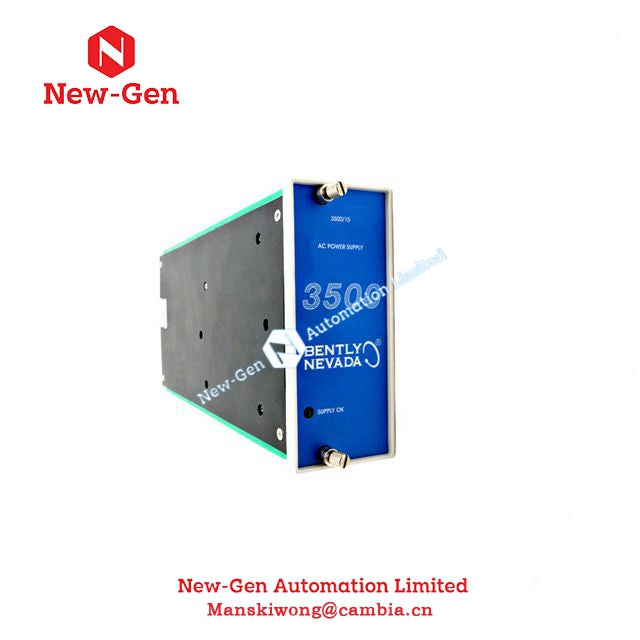

Bently Nevada 3500/15-02-00-00 AC and DC Power Supplies

SKU: 3500/15-02-00-00

Technical specifications

  • Manufacturer: Bently Nevada

  • Condition：New with Original Package

  • Product Type: AC and DC Power Supplies

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.

100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
1-Year Warranty on All Products

Ask an expert

Chat Email +8618030205725

Help us reach more people! Share this product with your network and show your support!

Product Description

The 3500/15 AC and DC Power Supplies are half-high modules that must be installed in special slots along the left side of the rack. One or two power supplies with any combination of AC and DC can be supported by the 3500 rack. Either supply can power an entire rack.
When two power supplies are installed in a rack, the supply in the lower
slot as the principal supply, and the other as the stand-by supply. Should the second supply be fitted, the second one is the reserve for the prime one.
Insertion or removal of either the power supply module does not impact operation of the rack as long as a secondary power supply has been fitted.
The 3500/15 AC and DC Power Supplies tolerates a very wide input
voltages to voltages for use by other 3500 modules. Power supplies identified below are available with the 3500 Series Machinery Protection System:
Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply

Technical Specifications

  • Input Voltage (AC Power Supply): 85 to 264 VAC, 47 to 63 Hz

  • Input Voltage (DC Power Supply): 88 to 140 VDC

  • Power Consumption: Varies based on system load

  • Output Voltage: 24 VDC regulated

  • Operating Temperature: -30°C to +65°C

  • Humidity Range: 0 to 95% relative humidity (non-condensing)

  • Dimensions: Standard 3500 system module size

  • Weight: Approx. 1.39 kg (2.87 lbs)

  • Redundancy Support: Fully redundant operation with two power supplies

  • Certifications: CE, UL, CSA, ATEX compliant



Other Attributes

  • Series: 3500 System
  • Country of Origin: USA
  • Lead Time: In Stock, 2 Working Days
