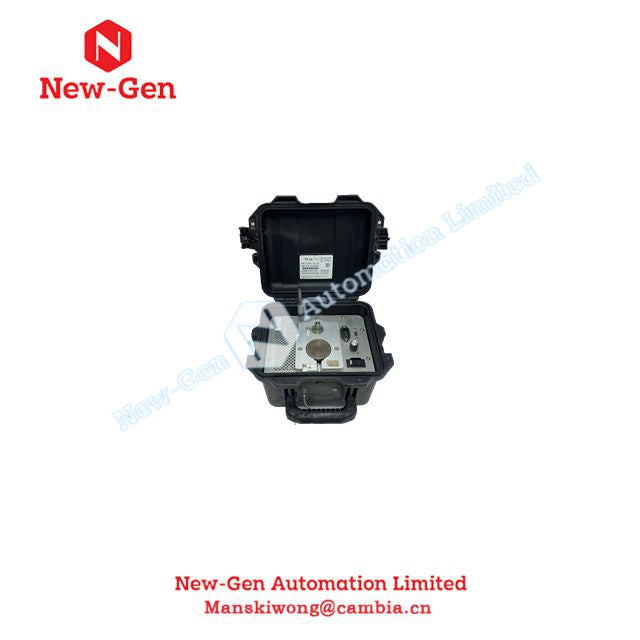

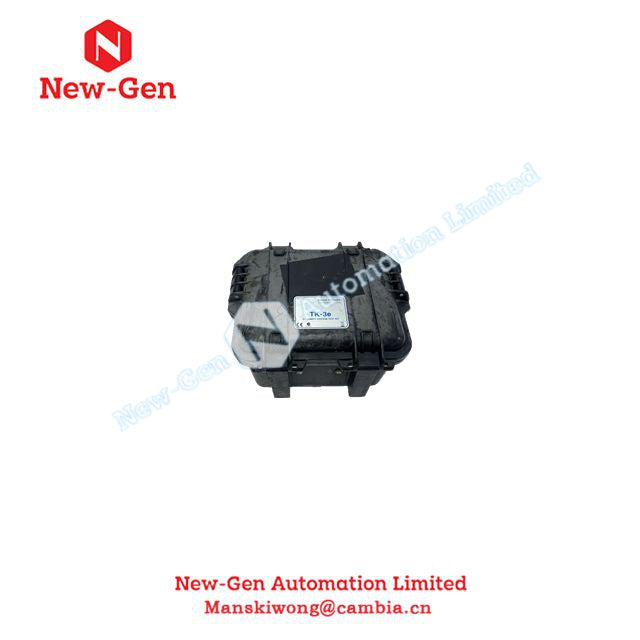

Bently Nevada 177313-02-01 Electric Driven TK-3e Proximity System Test Kit

SKU: 177313-02-01
(3)

Technical specifications

  • Manufacturer: Bently Nevada

  • Condition：New with Original Package

  • Product Type: Electric Driven TK-3e

  • Country of Origin: USA

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

By submitting a request for this item, you confirm that you have reviewed and accepted our Terms & Conditions. Please note that all transactions will be processed offline.

100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
1-Year Warranty on All Products

Ask an expert

Chat Email +8618030205725

Help us reach more people! Share this product with your network and show your support!

Product Description

The TK-3 Proximity System Test Kit is designed to simulate shaft vibration and position for calibrating Bently Nevada monitors. It ensures accurate transducer inputs and monitor readings. The kit features a removable spindle micrometer assembly with a universal probe mount that accommodates probe diameters from 5 mm to 19 mm (0.197 in to 0.75 in). This mount holds the probe while the user adjusts the target position in calibrated increments, recording the output from the Proximitor Sensor using a voltmeter. The spindle micrometer also has a magnetic base for field use. For calibrating vibration monitors, the motor-driven wobble plate and swing-arm assembly hold the proximity probe in place, using a universal probe mount. By adjusting the probe’s position and using a multimeter, the user can generate a mechanical vibration signal and compare it to the vibration monitor’s reading. The mechanical vibration signal from the TK-3 ranges from 50 to 254 μm (2 to 10 mils) peak-to-peak.

Technical Specifications

    • Model: 177313-02-01
    • Type: Electric Driven Proximity System Test Kit
    • Probe Mount Compatibility: 5 mm to 19 mm (0.197 in to 0.75 in) probe diameters
    • Mechanical Vibration Signal Range: 50 to 254 μm (2 to 10 mils) peak-to-peak
    • Drive Type: Electric motor-driven wobble plate
    • Base Type: Magnetic base for easy field setup
    • Calibration Method: Uses spindle micrometer and motor-driven wobble plate for precision calibration of proximity transducer systems and vibration monitors
    • Measurement Output: Peak-to-peak DC voltage output corresponding to mechanical vibration signal
    • Operating Environment: Designed for use in field conditions, providing accurate results even in harsh industrial environments
    • Power Supply: Electric-driven system; requires standard power sources as specified in user manual
    • Dimensions: Compact and portable for easy transportation and use in the field
    • Weight: 5.22kg
    • Certifications: CE compliant



    Other Attributes

    • Series: TK3 Proximity System Test Kit
    • Country of Origin: USA
    • Lead Time: In Stock, 2 Working Days
