Bently Nevada

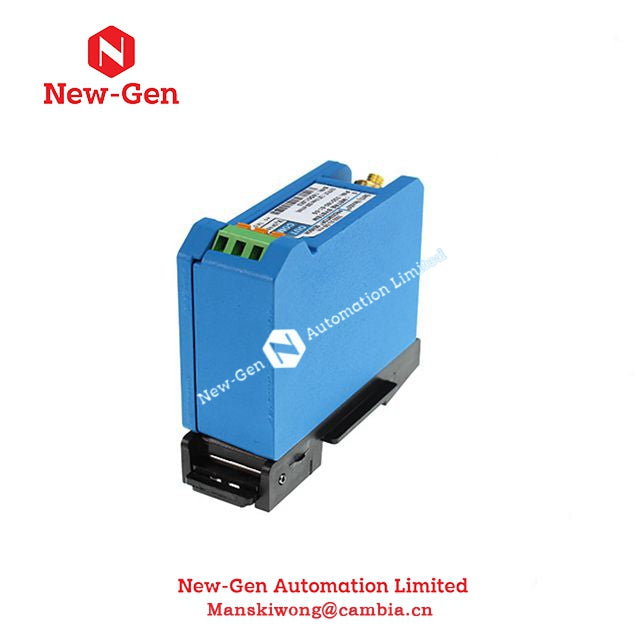

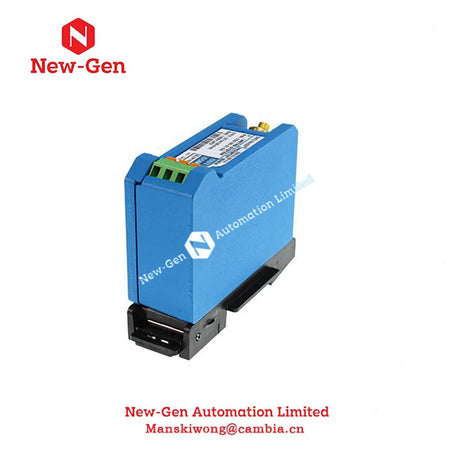

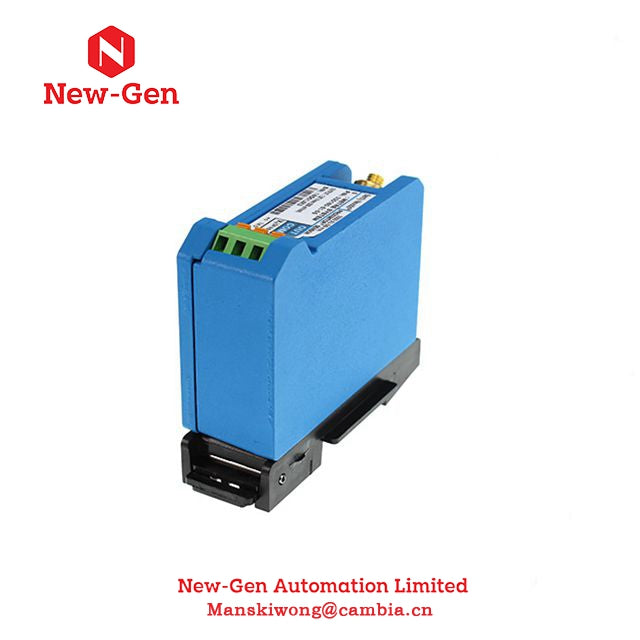

Bently Nevada 330780-51-CN 3300 XL Proximitor Sensor In Stock with Factory Sealed

Bently Nevada 330780-51-CN 3300 XL Proximitor Sensor In Stock with Factory Sealed


  • Manufacturer: Bently Nevada

  • Part Number: 330780-51-CN

  • Condition:New with Original Package

  • Product Type: Proximitor Sensor

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months


Product Description

The 3300 XL 8 mm Proximity Transducer System consists of:

  • One 3300 XL 8 mm probe,
  • One 3300 XL extension cable1
  • o One 3300 XL Proximitor Sensor2.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static
(position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.



                                                                        Other Attribute

                                                                        • Series: 3500 System
                                                                        • Country of Origin: USA
                                                                        • Lead Time: In Stock, 2 Working Days



                                                                        In Stock Hot Items of The 3500 System

                                                                        3500/15 125840-01 3500/15 106M1079-01
                                                                        3500/50 133388-02 1900/65A 172323-01
                                                                        3500/15 127610-01 3500/72M 140734-08
                                                                        3500/45 176449-04 3500/93 135785-01
                                                                        3500/32 125712-01 3500/32M 149986-02
                                                                        3500/20 125744-02 3500/42M 176449-02
                                                                        3500/22M 138607-01 135145-01
                                                                        3500/25 149369-01 106M1079-01
                                                                        3500/42M 176449-02 126648-01
                                                                        3500/15 125840-01 135137-01
                                                                        3500/42M 140734-02 146031-01
                                                                        3500/53 133388-01 125800-01
                                                                        3500/53127610-01 167669-02
                                                                        3500/05-01-01-00-00-00 128229-01
                                                                        133442-01 133396-01
                                                                        133442-01 125720-01
