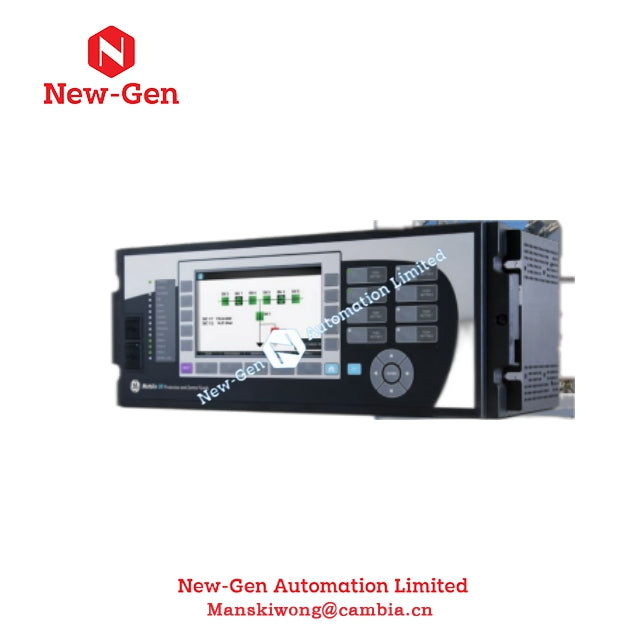

GE T35-E00-HUH-F8N-H6C-MXX-PXX-UXX-WXX Controller System In Stock

Product Description

The T35 is designed to provide basic transformer protection functions for variety of transformer applications. It uses multiple current inputs to provide primary protection and backup protection of transformers, including differential, phase and ground overcurrent. The relay can be configured to accept up to 6 sets of current inputs to provide proper differential restraint for applications with three-winding transformers with windings configured in dual-breaker arrangements.

The GE T35 Transformer Protection System is an advanced, highly configurable protective relay designed for comprehensive transformer protection. With high-performance metering, event recording, and fault diagnostics, the T35 system offers reliable protection against transformer faults and disturbances. The modular design provides flexible I/O configurations, ensuring adaptability for various industrial and utility applications. This system supports advanced diagnostics, real-time monitoring, and cyber security features, ensuring high availability and security of the transformer protection solution.

Technical Specifications

• I/O Configurations: Modular and scalable to meet demanding transformer protection needs.
• Communication Protocols: Supports IEC 61850, DNP 3.0, Modbus TCP/IP, and other protocols for integration into existing SCADA and DCS systems.
• Recording Capabilities: Event and oscillography recording with up to 64 digital and 40 analog channels, capable of capturing data at high speed for fault analysis.
• Sampling Rate: Supports up to 64 samples per cycle, ensuring accurate measurement and fault detection.
• Diagnostic Functions: Continuous self-testing and diagnostics for device health monitoring.
• Advanced Protection Functions: The T35 offers protection features including 51G (Ground Time Overcurrent), 51P (Phase Time Overcurrent), and 87T (Transformer Differential), enabling fast and reliable fault detection.
• Metering and Monitoring: Built-in metering capabilities for current, voltage, and power parameters with high accuracy, including RMS, fundamental magnitude, and angle data. It supports monitoring of equipment health through RTDs and DCmA inputs.
• Fault & Disturbance Recording: Includes powerful disturbance recording features with high sampling rates of up to 64 samples per cycle, ensuring accurate fault analysis. Events can be recorded with up to 45 seconds of data for in-depth analysis.
• Flexible Logic and I/O Configuration: The system supports flexible, modular I/O configurations for a wide range of protection and control schemes. Custom protection logic can be implemented using the FlexLogic programming engine.
• Sequence of Event Recording: The T35 can record up to 1024 time-stamped events, providing detailed insights into the sequence of operations during transformer faults.
• Cyber Security: Equipped with CyberSentry UR, the T35 complies with NERC CIP and NIST cybersecurity standards, offering AAA server support, role-based access control, and event recording for enhanced protection against unauthorized access.


Other Attributes

• Series: UR Series Universal Relays
• Country of Origin: USA
• Lead Time: In Stock, 2 Working Days
